Op-Amp, Inverting and Non-Inverting Amplifiers


Op-Amp, Inverting and Non-Inverting Amplifiers problem 17

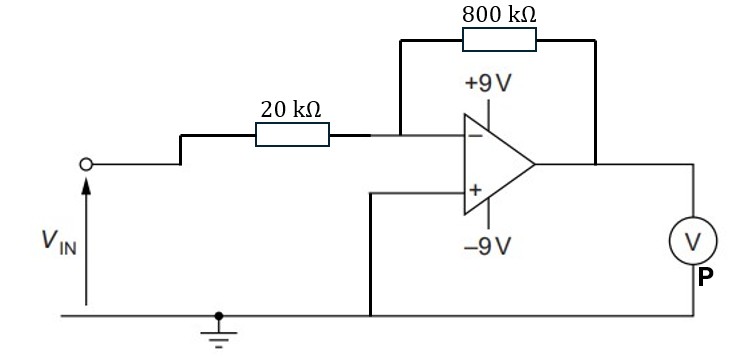

An inverting amplifier, incorporating an operational amplifier (op-amp), uses a high-resistance voltmeter to display the output. A partially completed circuit for the amplifier is shown in the figure below.




The voltmeter is to indicate a full-scale deflection of for an input potential of .


  • On the figure above,


    • complete the circuit for the inverting amplifier,


    • mark, with the letter P, the positive terminal of the voltmeter.


  • Suggest appropriate values for the resistors you have shown in the figure. Label the resistors in the figure with these values.




main author and content editor: Ebenezer Famadewa
