Magnetic Fields and Fields due to Currents


Magnetic Fields and Fields due to Currents problem 21

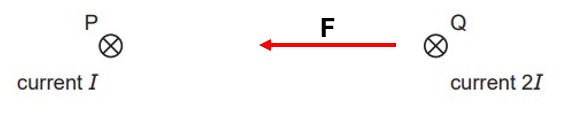

Two long straight parallel wires P and Q carry currents into the plane of the paper, as shown in the figure below.




The current in P is and the current in Q is .


  • On the figure above, draw an arrow to show the direction of the magnetic field at wire Q due to the current in wire P. Label this arrow B.


  • On the figure above, draw another arrow to show the direction of the force acting on wire Q due to the current in wire P. Label this arrow F.
