Normal and frictional forces


Normal and frictional forces problem 3

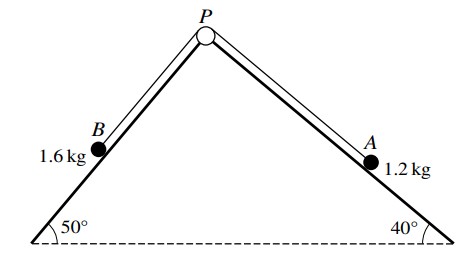

The diagram shows a particle A, of mass , which lies on a plane inclined at an angle of to the horizontal and a particle B, of mass , which lies on a plane inclined at an angle of to the horizontal. The particles are connected by a light inextensible string which passes over a small smooth pulley P fixed at the top of the planes. The parts AP and BP of the string are taut and parallel to lines of greatest slope of the respective planes. The two planes are rough, with the same coefficient of friction, , between the particles and the planes. Find the value of for which the system is in limiting equilibrium.
