Output Devices


Output Devices problem 7

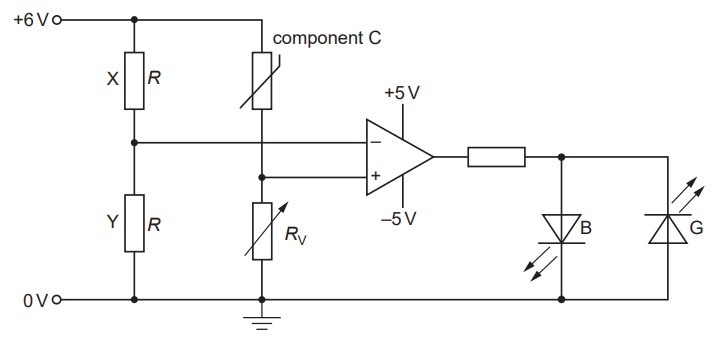

A student designs a circuit incorporating an operational amplifier (op-amp) as shown in the figure below.

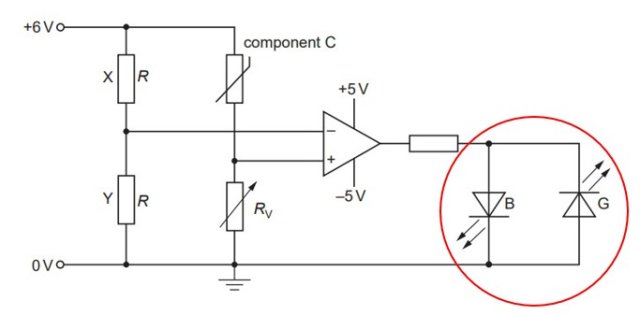

  • On the figure, draw a circle around the output device.


  • State the purpose of this circuit.
