Output Devices


Output Devices problem 8

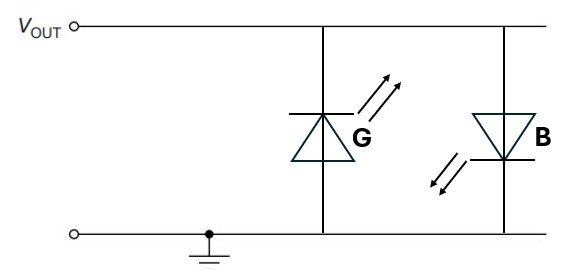

The output potential from an operational amplifier is to be monitored using an output device. The output can be either or . On the figure below, draw a circuit for the output device that consists of two light-emitting diodes B and G. Diode B alone is to emit light when is . Diode G alone is to emit light when is .
